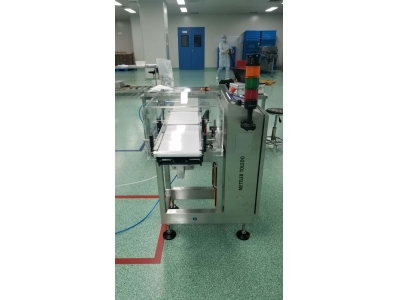

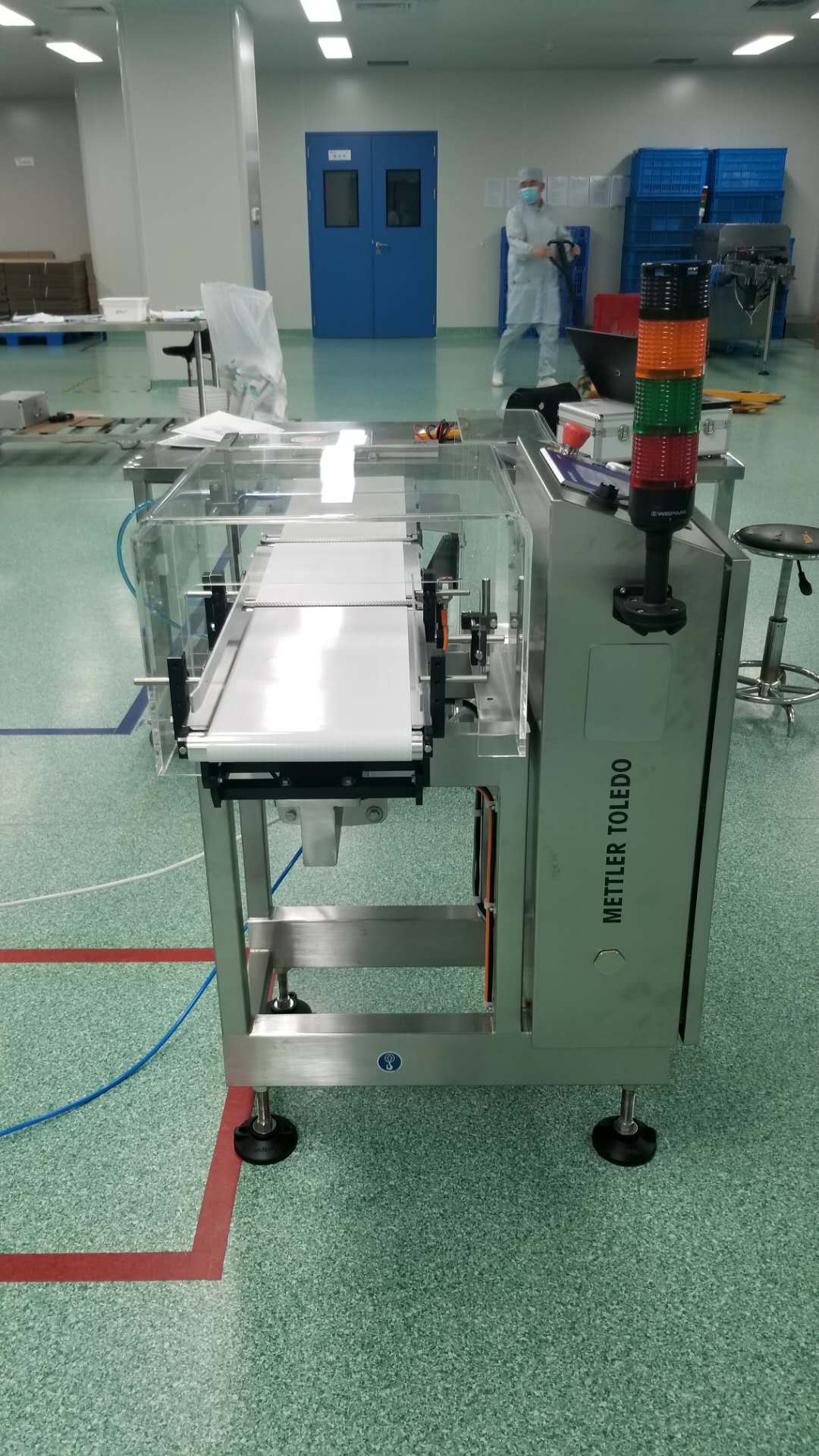

Mettler Toledo 梅特勒 在線稱重 檢重秤
Mettler Toledo 梅特勒 在線稱重 檢重秤
- 品牌： Mettler Toledo 梅特勒
- 型號： XD系列
- 其他型號：
自動檢重秤技術參數
Technical specification of the checkweigher
(與產品的尺寸、重量，行為、產量及使用環境有關)
(dependent on product size, weight and behaviour, throughput and environmental influence)
產量 throughput, up to 120件/分鐘 120weighings per minute
傳感器 weighcell 數字信號，免維護，性能穩定，溫度影響很小。
, digital, maintenance free, temperature stable
機械性能 Mechanical specification
產品輸入 輸入傳輸帶，安裝在檢重秤的基架上，鋁制，400/150mm (軸距/皮帶寬)
infeed of products infeed conveyor integrally mounted with the checkweigher
made of black anodized aluminium
400/150 mm (distance between axles/belt width)
稱量傳輸帶 鋁制，200/150mm (軸距/皮帶寬)
weighing conveyor made of black anodized aluminium
200/150 mm (distance between axles/belt width)
產品輸出 輸出傳輸帶，安裝在檢重秤的基架上，鋁制，400/150mm (軸距/皮帶寬)
outfeed of products outfeed conveyor integrally mounted with the checkweigher
made of black anodized aluminium
400/150 mm (distance between axles/belt width) l
電機 直流無刷馬達，集成控制電路，速度可通過觸摸屏連續可調。
motor DC brushless motor with integrated control circuitry; speed continuously variable at the touch of a key.
剔除設備 吹氣式，用于剔除超重/欠重產品，安裝于輸出傳輸帶上
rejection device sorting of over- and underweights by air jet mounted on outfeed conveyor (rejection of overweights can be switched off)
(rejection towards the operator side) (please confirm)
壓縮空氣 4-8 bar，氣耗量：約50 升/小時
compressed air 4-8 bar, air consumption approx. 50 l/hour
生產線高度 850 mm (請確認)，標準高度570-1100mm
line height 850 mm (please confirm), standard from 570-1100mm.
地腳螺栓 不銹鋼材質，高度調節：+/-30 mm
foot screws made of stainless steel, height adjustable +/-30 mm
傳輸方向 從左向右 (操作者面對顯示屏) (請確認)
transport direction from left to right (see from the operator’s side) (please confirm)
使用環境 為確保達到最好的精度，檢重秤的安裝地點應避免震動及空氣的流動
ambient conditions to ensure maximum accuracy, the location where the checkweigher is to be installed must be free of vibrations and air draft as far as possible
材質/設計 不銹鋼立柱支撐，立柱內安裝電子、電氣和驅動控制系統
material/design stainless steel/self supporting housing as a columnar cabinet, incorporating the electric and electronic systems and the drive control system.
防護等級 標準：IP54
ingress protection Standard: IP54
電氣性能 Electrical specification
電氣安裝 遵循VDE0100和0113
electrical installations corresponding to the VDE guidelines 0100 and 0113
電源要求 115/230V，單相，N，PE，50Hz
power supply 115/230 V, single-phase, N, PE, 50/60 Hz
功率wattage 500 VA
使用溫度 0 - 40 ° C
temperature range 0 - 40 ° C
注意 自動檢重秤的供電電源應單獨布線，以確保沒有電氣和電磁干擾
note The power supply of the checkweigher must be interference-free (EMC,HF) to ensure trouble-free operation.
信號 無源觸點輸出potential-free outputs (designed as “make contact”)：
signals - 檢重秤準備運行 weigher is ready
- 傳輸帶運行 conveyors are running
稱重顯示儀 Weighing terminal
顯示儀外殼 鑲嵌在控制柜上
terminal housing integrated in the control cabinet
顯示屏 Screen
顯示屏 高亮度、高對比度彩色液晶觸摸顯示屏，5.7“
display bright, high-contact colour touchscreen LC display, size 5.7”
功能 分辨率1/4VGA
Function resolution 1/4VGA
顯示 - 當前產品；標準重量和皮重
- 當前操作員；時間和日期
Indication - current article; nominal weight and tare
- current operator; time and data
當前重量值 大字顯示毛重或大字顯示凈重。
Current weight value large gross weight ondication,or large net weight indication
操作區 密碼登入和置零
Action section for log-in and re-zeroing
菜單部分Menu section
操作指導 觸摸屏上顯示明晰的操作方法
operator guidance intuitive operation approach by touchscreen display
軟開關softkey 控制電機開和關/for motor start/stop
HOME鍵HOME key 用于快速退回主頁面/for quick jump back to the basic screen
MENU鍵MEMU key 用于打開屏幕菜單/for opening the list of screen
HELP鍵HELP key 用于打開幫助菜單/for context-sensitive help
前進/后退鍵 用于在不同頁面間瀏覽
FORWARD/
BACKWARD key for moving from one screen to another
系統信息 按時間和日期顯示的系統歷史信息
Syetem message history of last system message with date/time
基本顯示界面Basic screen
分類計數 重量分類顯示：每個重量區域內的個數；當前重量分類指示。
Counter levels indication of the weight classification: counter levels of each weight zone and indicate the current weighing
信息欄 系統狀態和系統信息
Info line system status and system message
